FW Series
- Crimp Cable Type

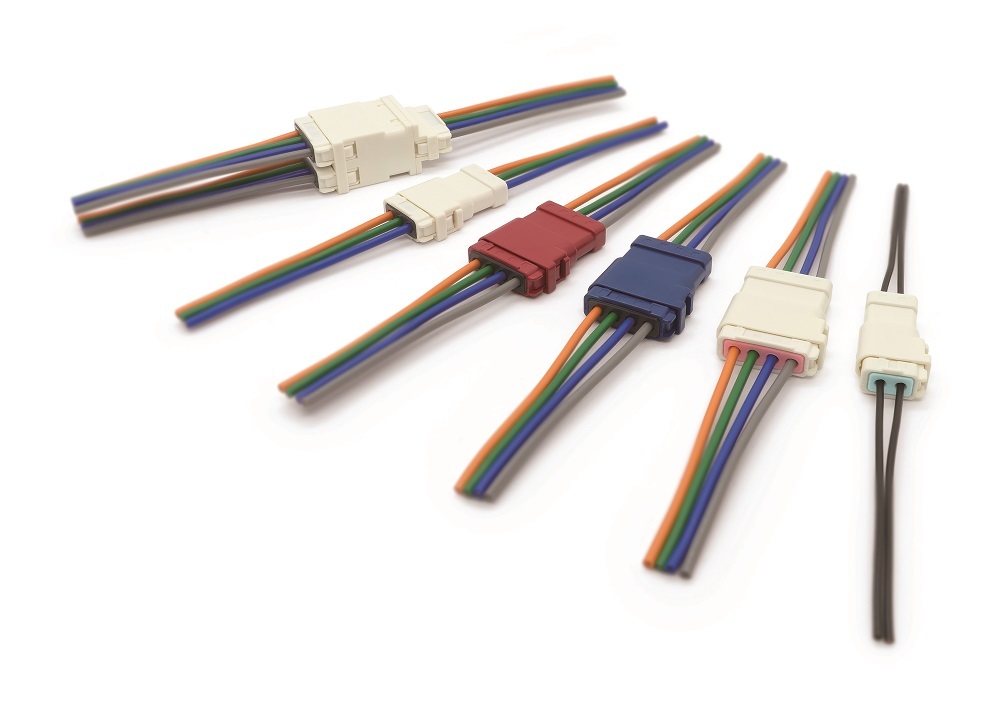

New product release KEL “FW Series” 5.0mm pitch waterproof connector conforming to IP67 standard
Dustproof & waterproof performance compliance grade "IP 67" compliant. The smallest class external dimensions with a 5.0 mm pitch waterproof connector. Mating height 8.9 mm and length 34.5 mm. Ideal for connection wiring in a narrow space.
Based on KEL's stable connection design concept, the shape of the crimp terminal is the same on the plug side and the receptacle side. High connection reliability is realized by three point contact of independent spring mechanism. The locking structure of the connector ensures reliable fitting with reliable click feeling and prevents unexpected removal.
FW series has been developed with the aim of improving the workability of the assembly process. The crimp contacts have the same shape on the plug side and the receptacle side, the crimp applicators can be used in common. The cable seal and the seal ring have already been mounted on the housing and the harness is assembled by simply inserting the crimped terminal of the terminal. The housing shape can be fixed with a binding band. By using a dummy pin (option product) to close the cable insertion hole, it is possible to configure a new number of contacts without changing connectors. Number of contact: 2, 3, 4. Housing color: White, Red, and Blue. Cable seals color: Black, Light blue, and Pink, depending on the outer cable color. Assemble workability is enhanced by the visibility effect by these color variations.
Branch and relay type products are under development. It is possible to reduce the number of cables by branch and relay type connector. Since FW series branching & relay type is also small and low profile, it can be installed to the duct inner diameter φ 32.6 mm.
Features
-
・This is the industry's smallest-class waterproof connector with small size and low height.
・The size is small and thin, but it has excellent waterproof and dustproof conforming to IP 67 class.
・3 point contact with independent springs always ensures stable contact.
・Since the crimp terminals are of the same type, the crimp applicator can be shared.
・The effective mating length is 1.5 mm, which is a highly reliable design.
・This is a type with built-in cable seal and seal ring.
・The lock has a click feeling and a robust lock shape.
・The housing color can be selected from 3 colors, white, red, and blue.
・The cable shield color is 3 colors of black, light blue, pink, according to the cable covering diameter.
・Dummy pins for plugging cable insertion holes are available.
2 colors of white and black are set according to the cable covering.・Can be combined with the branching and relay type being developed.
Specifications
-
Material and plating Insulator material Glass-filled PBT (UL94V-0)
Color: White, Red, BlueCrimp contact material Copper-alloy Crimp contact plating (Contact area / Crimping area) Tin over Nickel Cable seal / Seal ring material Silicone rubber(Secondary vulcanized) -
Electrical Characteristics Current rating (AWG # 16) 10A MAX per terminal.
(AWG # 18/20) 7A MAX per terminal.Protection grade IP67 Contact resistance [FWP]10 mΩ max.
[FWB]20 mΩ max.Dielectric withstanding voltage 1,700 V AC for 1 minute Insulation resistance 1,000 MΩ min. at 500V DC Operating temperature -55℃ to +105℃ Applicable cable AWG # 16 / 18 / 20 / 22 (0.3 to 1.25 sq)
(Cable covering diameter: φ1.5 to 3.1 mm)
Download Documents
Catalog |
---|
Products List
Part Number | Description |
---|---|
#635 | Crimp contact for FWP01/11-□□-□□, #18 / 20 AWG (0.5 to 0.75 sq) (Cable covering diameter: φ1.5 to 2.7 mm) |
#635-L | Crimp contact for FWP01/11-□□-□□, #16/18 AWG (0.75 to 1.25 sq) (Cable covering diameter: φ2.7 to 3.1 mm) |
#635-S | Crimp contact for FWP01/11-□□-□□, #22 AWG (0.3 sq) (Cable covering diameter: φ1.5 to 2.7 mm) |
FWB01-02-1 | 5.0 mm pitch waterproof connector, Branch relay type, Receptacle, 2 pin, Housing color: White |
FWB01-02-4 | 5.0 mm pitch waterproof connector, Branch relay type, Receptacle, 2 pin, Housing color: Black |
FWB01-03-1 | 5.0 mm pitch waterproof connector, Branch relay type, Receptacle, 3 pin, Housing color: White |
FWB01-03-4 | 5.0 mm pitch waterproof connector, Branch relay type, Receptacle, 3 pin, Housing color: Black |
FWB01-04-1 | 5.0 mm pitch waterproof connector, Branch relay type, Receptacle, 4 pin, Housing color: White |
FWB01-04-4 | 5.0 mm pitch waterproof connector, Branch relay type, Receptacle, 4 pin, Housing color: Black |
FWP-1 | Dummy pin for FWP01/11, Color: White, Applicable cable seal: Black, Light blue |
