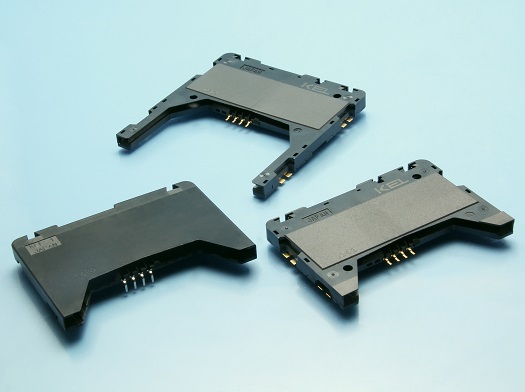

ISO Card Connector / Landing Contact Type

Recent years have seen an explosion in the use of smart cards - that is, media devices containing multi-functional microchips.
Going forward, further demand is expected in terms of vehicle-mounted devices for electronic toll collection systems, electronic money solutions, bank terminals, medical ID systems, and the like.
The KEL ISC Series provides landing-type connectors for smart cards compliant with ISO 7816.
Cost has been reduced through the use of a simplified design comprising a lower number of component parts (seven) than conventional connectors, furthermore, this series features a low profile of a mere 5.3 mm.
KEL's unique Seesaw Contact Method distances the mechanical section that makes physical contact with smart cards from the electrical connection points and deploys the contact section within a recess in the insulator, thus preventing the buildup of dust and the resultant contact instability.

ISC3/ ISC3-5: SMT type
ISC5:DIP type This conforms to the ISO/IEC7816 standard.
(It is not applicable to metal cards)

Features & Specifications

Features

・This conforms to the ISO/IEC7816 standard.
(It is not applicable to metal cards)

・Original“Seesaw”contact design.

・Low profiele with 5.3mm (0.209") height.

・With card detection switch.

・High durability for IC card insertion/withdrawal. (200,000 times min. guaranty)

・ISC3 series :SMT type, ISC5 series: DIP type.

・With positioning posts and retention clips.

・Conforms to ISO/IEC7816 standard.

Specifications
Insulator material [ISC3](Base)Glass-filled LCP (UL94V-0), Black
(Cover)Glass-filled PPS (UL94V-0), Black
[ISC5] Glass-filled PBT (UL94V-0), Black
Contact material Copper alloy
Contact plating Gold over Nickel
Detection switch material Copper alloy
Detection switch plating Gold over Nickel
Retention clip material [ISC3]Copper alloy
Retention Clip plating [ISC3]Gold over Nickel
Current rating (Contact)1A per contact
(Detection switch)1mA to 50mA (20V max.)
Contact resistance (Contact)40mΩ max.
(Detection switch)100mΩ max.
Dielectric withstanding voltage [ISC3]1,000V AC for 1 minute
[ISC5] 650V AC for 1 minute
Insulation resistance 1,000MΩ min. at 500V DC
Operating Temperature [ISC3]-55℃ to +105℃
[ISC5]-40℃ to + 85℃

Download Documents

Catalog
Product Table

Products List


Products List:5Hits.
Part Number Description
ISC3-08L-F ISO IC Card (Smart Card) Connector, Landing contact SMT type, Guide type : Long, 8 pin
ISC3-08L-NF ISO IC Card (Smart Card) Connector, Landing contact SMT type, Dustproof type, Guide type : Long, 8 pin
ISC3-08S-5F ISO IC Card (Smart Card) Connector, Landing contact SMT type, Guide type : Short, Strengthning guide type, 8 pin
ISC3-08S-6NF ISO IC Card (Smart Card) Connector, Landing contact SMT type, Dustproof type, Guide type : Short, 8 pin
ISC5-08S-F ISO IC Card (Smart Card) Connector, Landing contact DIP solder type, Guide type : Short, 8 pin
Products list:5Hits.
