8825E Series

  • Flat Cable Type
  • top_rosh.gif

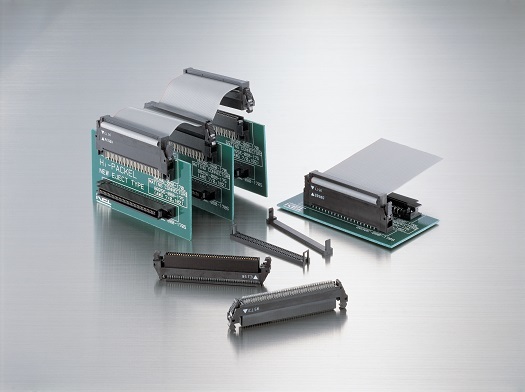

1.27mm Pitch Connector for 0.635mm Pitch Flat Cable

Designed for a single flat cable of 0.635mm pitch, the connectors of the 8825E(R) Series are suitable for daisy-chain applications.
The 0.635mm pitch, flat cable is assembly using a double blade-spring, sandwich mechanism that facilitates simple yet reliable cable assembly.
Making use of KEL`s unique Eject Lock mechanism for simple, one-handed insertion and removal, this series contributes to higher efficiency in assembly operations.

Features & Specifications

Features

・With a completely-independent two-point contact system, a stable contact pressure is maintained at all times.

・Low insertion and withdrawal force.

・Connectors with the Eject-Lock mechanism, allowing one-handed insertion and release.

・Patented ribbon cable contact design protects against conductors being damaged during the asssembly process.

・Abillity to make Daisy chain assembllies.

Specifications
Insulator material Glass-filled Nylon 66 (UL 94V-0), Black
Contact material Copper alloy
Contact plating (Contact area) Gold over Nickel
(Terminal area) Tin copper over Nickel
Retention clip material Copper alloy
Retention clip plating Tin copper over Nickel
Current rating 1A per contact
Contact resistance 30mΩ max.
Dielectric withstanding voltage [8825□]300V AC for 1 minute [883□E]650V AC for 1minute
Insulation resistance [8825□]1,000MΩ min. at 250V DC
[883□E]1,000MΩ min. at 500V DC
Operating temperature -55℃ to +85℃
Recommended cable #30 AWG (7/0.102), 0.635mm (25mil) pitch, Flat ribbon cable

Download Documents

Catalog
Mating Matrix
Product Table

Products List


Products List:71Hits.
Part Number Description
8825E-020-175-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), With strain relief, 20 pin
8825E-020-175D-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), 0.25μm min. Gold plating, With strain relief, 20 pin
8825E-026-175-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), With strain relief, 26 pin
8825E-026-175D-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), 0.25μm min. Gold plating, With strain relief, 26 pin
8825E-030-175-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), With strain relief, 30 pin
8825E-030-175D-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), 0.25μm min. Gold plating, With strain relief, 30 pin
8825E-032-175-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), With strain relief, 32 pin
8825E-032-175D-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), 0.25μm min. Gold plating, With strain relief, 32 pin
8825E-034-175-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), With strain relief, 34 pin
8825E-034-175D-F 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Receptacle (Cable side Connector), 0.25μm min. Gold plating, With strain relief, 34 pin
Products list:71Hits.
