3205/3305 Series

  • Card Edge Type
  • top_rosh.gif

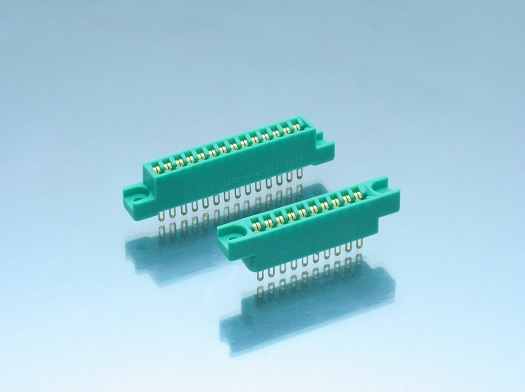

4mm Pitch Card Edge Connector

Used mainly in industrial equipment.
Applicable to KEL RUGGED Series.

Features & Specifications

Features

・Soldering-type contact.

・Four variations for pin count available, from 10 to 22 pins.

・Positioning posts are available.

Specifications
Insulator material Polycarbonate (with glass fiber) UL94V-0, Grass green
Contact material Copper alloy
Contact plating Gold over Nickel
Applicable printed circuit board 1.6 mm tick
Current ratings 5A per contact
Contact resistance 10mΩ max.
Dielectric withstand voltage 1,800V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 4.9N max./pair
Withdrawl force 0.59N min./pair
Operating temperature -30°C to +85°C

Download Documents

Product Table

Products List


Products List:8Hits.
Part Number Description
3205-010-011 Card Edge Connector, 4mm Pitch, DIP, 10 pin
3205-014-011 Card Edge Connector, 4mm Pitch, DIP, 14 pin
3205-018-011 Card Edge Connector, 4mm Pitch, DIP, 18 pin
3205-022-011 Card Edge Connector, 4mm Pitch, DIP, 22 pin
3305-010-011 Card Edge Connector, 4mm Pitch, DIP, 10 pin
3305-014-011 Card Edge Connector, 4mm Pitch, DIP, 14 pin
3305-018-011 Card Edge Connector, 4mm Pitch, DIP, 18 pin
3305-022-011 Card Edge Connector, 4mm Pitch, DIP, 22 pin
Products list:8Hits.
