1150N Series

  • Card Edge Type
  • top_rosh.gif

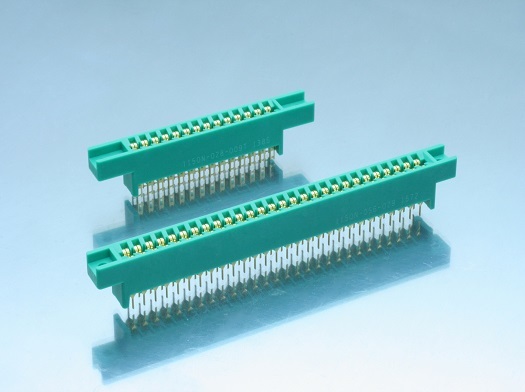

4mm Pitch Card Edge Connector

Stable contact force is achieved by the adopted bellows form type.
Used mainly in industrial equipment.
Applicable to KEL RUGGED Series.

Features & Specifications

Features

・Two kinds of contacts are available: soldering type and solder-dip type.

・Five variations for pin count available, from 20 to 56 pins.

・Positioning posts are available.

Specifications
Insulator material Polycarbonate (with glass fiber) UL94V-0, Grass green
Contact material Copper alloy
Contact platings Gold over Nickel
Applicable printed circuit board 1.6mm tick
Current ratings 2A per contact
Contact resistance 16mΩ max.
Dielectric withstand voltage 1,600V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 4.9N max./pair
Withdrawl force 0.59N min./pair
Operating temperature -30°C to +85°C

Download Documents

Product Table

Products List


Products List:10Hits.
Part Number Description
1150N-020-009 Card Edge Connector, 4mm Pitch, DIP, 20 pin
1150N-020-029 Card Edge Connector, 4mm Pitch, DIP, 20 pin
1150N-028-009 Card Edge Connector, 4mm Pitch, DIP, 28 pin
1150N-028-029 Card Edge Connector, 4mm Pitch, DIP, 28 pin
1150N-036-009 Card Edge Connector, 4mm Pitch, DIP, 36 pin
1150N-036-029 Card Edge Connector, 4mm Pitch, DIP, 36 pin
1150N-044-009 Card Edge Connector, 4mm Pitch, DIP, 44 pin
1150N-044-029 Card Edge Connector, 4mm Pitch, DIP, 44 pin
1150N-056-009 Card Edge Connector, 4mm Pitch, DIP, 56 pin
1150N-056-029 Card Edge Connector, 4mm Pitch, DIP, 56 pin
Products list:10Hits.
