1156 Series

  • Card Edge Type
  • top_rosh.gif

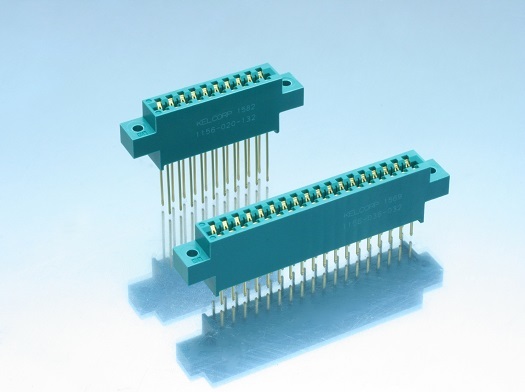

4mm Pitch Card Edge Connector

4mm pitch card edge connector used mainly for industrial equipment.
Applicable to KEL RUGGED Series.

Features & Specifications

Features

・Two kinds of contacts are available: solder-dip type and wire-wrap type.

・Seven pole numbers are available, from 20 to 88 poles.

・A positioning post is available.

Specifications
Insulator material Diallyl phthalate (with glass fiber), Green
Contact material Copper alloy
Contact plating Gold over Nickel
Recommended PCB thickness t=1.6(0.063)
Current rating 3A per contact
Contact resistance 10mΩ max.
Dielectric withstanding voltage 1,600V AC for 1minute
Insulation resistance DC 500 V, 5,000 MΩ or more
Insertion force 4.9N max./pair
Extraction force 0.59N min./pair
Operating temperature -55°C to +85°C

Download Documents

Product Table

Products List


Products List:14Hits.
Part Number Description
1156-020-032 Card Edge Connector, 4mm Pitch, DIP, 20 pin
1156-020-132 Card Edge Connector, 4mm Pitch, WIRE WRAP, 20 pin
1156-028-032 Card Edge Connector, 4mm Pitch, DIP, 28 pin
1156-028-132 Card Edge Connector, 4mm Pitch, WIRE WRAP, 28 pin
1156-036-032 Card Edge Connector, 4mm Pitch, DIP, 36 pin
1156-036-132 Card Edge Connector, 4mm Pitch, WIRE WRAP, 36 pin
1156-044-032 Card Edge Connector, 4mm Pitch, DIP, 44 pin
1156-044-132 Card Edge Connector, 4mm Pitch, WIRE WRAP, 44 pin
1156-056-032 Card Edge Connector, 4mm Pitch, DIP, 56 pin
1156-056-132 Card Edge Connector, 4mm Pitch, WIRE WRAP, 56 pin
Products list:14Hits.
