1258N Series

  • Card Edge Type
  • top_rosh.gif

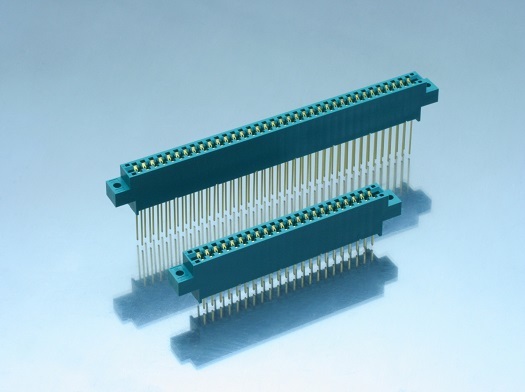

3.96mm Pitch Card Edge Connector

The 1258N Series of card edge connectors features a pitch of 3.96mm.
Put to use mainly in industrial devices, these edge connectors can be employed as part of the KEL Rugged Series.

Features & Specifications

Features

・Dual leads

・Six sizes: 44, 56, 60, 72, 86 and 88 pins

Specifications
Insulator material Glass-Filled PBT (UL94V-0)
Contact material Copper alloy
Contact plating Gold over Nickel
Recommended PCB thickness t=1.6(0.063)
Current rating 3A per contact
Contact resistance 10mΩ max.
Directric withstanding voltage 1,600V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 4.9N max./pair
Withdrawal force 0.274N min./pair
Operating Temperature -55°C to +85°C

Download Documents

Catalog
Product Table

Products List


Products List:12Hits.
Part Number Description
1258N-044-032 Card Edge Connector, 3.96mm Pitch, DIP, 44 pin
1258N-044-132 Card Edge Connector, 3.96mm Pitch, WIRE WRAP, 44 pin
1258N-056-032 Card Edge Connector, 3.96mm Pitch, DIP, 56 pin
1258N-056-132 Card Edge Connector, 3.96mm Pitch, WIRE WRAP, 56 pin
1258N-060-032 Card Edge Connector, 3.96mm Pitch, DIP, 60 pin
1258N-060-132 Card Edge Connector, 3.96mm Pitch, WIRE WRAP, 60 pin
1258N-072-032 Card Edge Connector, 3.96mm Pitch, DIP, 72 pin
1258N-072-132 Card Edge Connector, 3.96mm Pitch, WIRE WRAP, 72 pin
1258N-086-032 Card Edge Connector, 3.96mm Pitch, DIP, 86 pin
1258N-086-132 Card Edge Connector, 3.96mm Pitch, WIRE WRAP, 86 pin
Products list:12Hits.
