4820 Series

  • Card Edge Type
  • top_rosh.gif

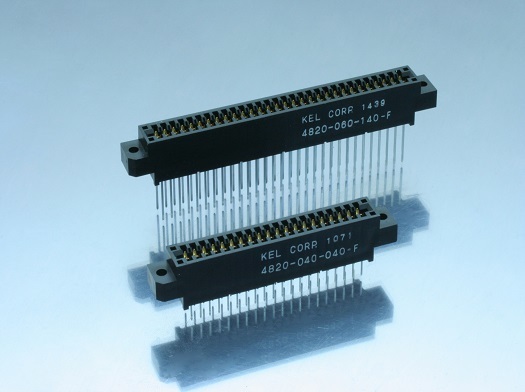

3.18 (3.175)mm Pitch Card Edge Connector

The 4820 Series of card edge connectors features a pitch of 3.175mm.
Put to use mainly in industrial devices, these edge connectors can be employed as part of the KEL Rugged Series or RK Series (100contact).

Features & Specifications

Features

・Dual leads

・Four sizes: 40, 60, 80 and 100 pins

Specifications
Insulator material Glass-Filled PBT (UL94V-0)
Contact material Copper alloy
Contact plating (Contact area)Gold over Nickel
(Terminal area)Tin copper over Nickel
Recommended PCB thickness t=1.6(0.063)
Current rating 3A per contact
Contact resistance 16mΩ max.
Dielectric withstanding voltage 1600V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 4.04N max./pair
Withdrawal force 0.314N min./pair
Operating Temperature -55°C to +85°C

Download Documents

Catalog
Product Table

Products List


Products List:8Hits.
Part Number Description
4820-040-040-F Card Edge Connector, 3.18mm Pitch, DIP, 40 pin
4820-040-140-F Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 40 pin
4820-060-040-F Card Edge Connector, 3.18mm Pitch, DIP, 60 pin
4820-060-140-F Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 60 pin
4820-080-040-F Card Edge Connector, 3.18mm Pitch, DIP, 80 pin
4820-080-140-F Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 80 pin
4820-100-040-F Card Edge Connector, 3.18mm Pitch, DIP, 100 pin
4820-100-140-F Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 100 pin
Products list:8Hits.
