4810 Series

  • Card Edge Type
  • top_rosh.gif

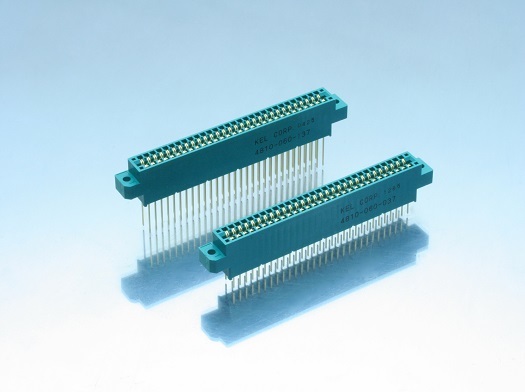

3.175mm Pitch Card Edge Connector

Used mainly in industrial equipment.
Applicable to KEL RUGGED Series and RK Series (100 pins).

Features & Specifications

Features

・Two kinds of contacts are available: solder-dip type and wire-wrap type.

・Four variations for pin count available, from 40 to 100 pins.

・Positioning posts are available.

Specifications
Insulator material PBT (with glass fiber) UL94V-0, Green
Contact material Copper alloy
Contact plating Gold over Nickel
Applicable printed circuit board 1.6 mm tick
Current ratings 3A per contact
Contact resistance 16mΩ max.
Dielectric withstanding voltage 1600V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 5.49N max./pair
Withdrawal force 0.274N min./pair
Operating temperature -55℃ to +85℃

Download Documents

Product Table

Products List


Products List:8Hits.
Part Number Description
4810-040-037 Card Edge Connector, 3.18mm Pitch, DIP, 40 pin
4810-040-137 Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 40 pin
4810-060-037 Card Edge Connector, 3.18mm Pitch, DIP, 60 pin
4810-060-137 Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 60 pin
4810-080-037 Card Edge Connector, 3.18mm Pitch, DIP, 80 pin
4810-080-137 Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 80 pin
4810-100-037 Card Edge Connector, 3.18mm Pitch, DIP, 100 pin
4810-100-137 Card Edge Connector, 3.18mm Pitch, WIRE WRAP, 100 pin
