937 Series

  • Card Edge Type
  • top_rosh.gif

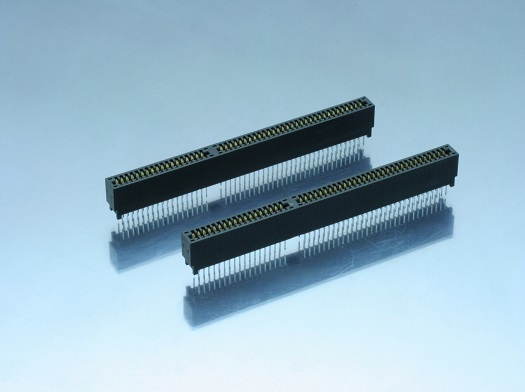

2.54mm Pitch Card Edge Connector

Used mainly as a card edge connector for personal computers.
2.54-mm-pitch connectors with 62 pins and 98 pins are available.

Features & Specifications

Features

・Used for PC/AT bus.

・Two variations for pin count available: 62 pins and 98 pins.

・Solder DIP type contact.

Specifications
Insulator material PBT (with glass fiber) UL94V-0
Contact material Copper alloy
Contact plating (Contact area)Gold over Nickel(Terminal area)Tin copper over Nickel
Applicable printed circuit board 1.6 mm thick
Current ratings 3A per contact
Contact resistance 16mΩ max.
Dielectric withstand voltage 800V AC for 1minute
Insulation resistance DC 500 V, 5,000 MΩ or more
Insertion force 4.04N max./pair
Withdrawl force 0.314N min./pair
Operating temperature -55°C to +85°C

Download Documents

Product Table

Products List


Products List:2Hits.
Part Number Description
937-062-041-F Card Edge Connector, 2.54mm Pitch, DIP, 62 pin
937-098-041-F Card Edge Connector, 2.54mm Pitch, DIP, 98 pin
