936 Series

  • Card Edge Type
  • top_rosh.gif

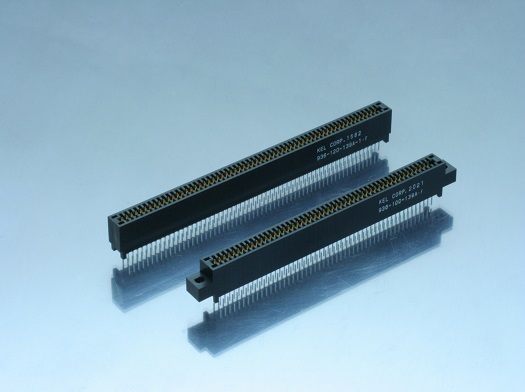

2.54mm Pitch Card Edge Connector

Used mainly as a card edge connector for personal computers.
2.54-mm-pitch connectors with 100 pins and 120 pins are available.

Features & Specifications

Features

・Solder-dip-type tail shape.

・Two variations for pin count available: 100 pins and 120 pins.

・For 100 pin connectors, two types are available, with or without a flanges.

Specifications
Insulator material PBT (with glass fiber) UL94V-0
Contact material Copper alloy
Contact plating (Contact area)Gold over Nickel
(Terminal area)Tin copper over Nickel
Applicable printed circuit board 1.6 mm tick
Current ratings 3A per contact
Contact resistance 16mΩ max.
Directric withstanding voltage 800V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 4.9N max./pair
Extraction force 0.314N min./pair
Operating temperature -55°C to +85°C

Download Documents

Product Table

Products List


Products List:3Hits.
Part Number Description
936-100-139A-1F Card Edge Connector, 2.54mm Pitch, DIP, 0.3μm min. Gold platingm, 100 pin
936-100-139A-F Card Edge Connector, 2.54mm Pitch, DIP, 0.3μm min. Gold platingm, 100 pin
936-120-139A-1F Card Edge Connector, 2.54mm Pitch, DIP, 0.3μm min. Gold platingm, 120 pin
Products list:3Hits.
