4630 Series

  • Card Edge Type
  • top_rosh.gif

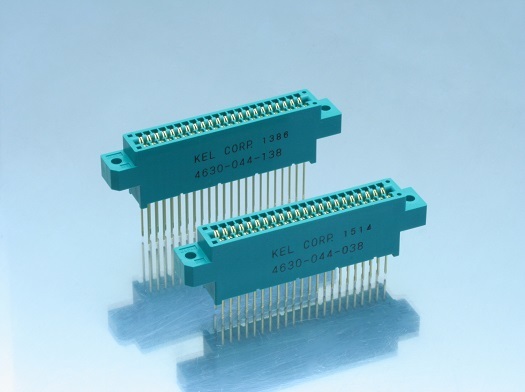

2.54mm Pitch Card Edge Connector

A card edge connector of 2.54 mm pitch.
Used mainly in industrial equipment.
Applicable to KEL RUGGED Series and RK Series (72, 100 pins).

Features & Specifications

Features

・Two kinds of contacts are available: solder-dip type and wire-wrap type.

・Seven variations for pin count are available, from 44 to 100 pins.

・Positioning posts are available.

Specifications
Insulator material PBT (with glass fiber) UL94V-0, Green
Contact material Copper alloy
Contact plating Gold over Nickel
Applicable printed circuit board 1.6 mm thick
Current ratings 3A per contact
Contact resistance 16mΩ max.
Dielectric withstand voltage 800V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 4.04N max./pair
Withdrawl force 0.314N min./pair
Operating temperature -55°C to +85°C

Download Documents

Product Table

Products List


Products List:14Hits.
Part Number Description
4630-044-038 Card Edge Connector, 2.54mm Pitch, DIP, 44 pin
4630-044-138 Card Edge Connector, 2.54mm Pitch, WIRE WRAP, 44 pin
4630-048-038 Card Edge Connector, 2.54mm Pitch, DIP, 48 pin
4630-048-138 Card Edge Connector, 2.54mm Pitch, WIRE WRAP, 48 pin
4630-056-038 Card Edge Connector, 2.54mm Pitch, DIP, 56 pin
4630-056-138 Card Edge Connector, 2.54mm Pitch, WIRE WRAP, 56 pin
4630-060-038 Card Edge Connector, 2.54mm Pitch, DIP, 60 pin
4630-060-138 Card Edge Connector, 2.54mm Pitch, WIRE WRAP, 60 pin
4630-072-038 Card Edge Connector, 2.54mm Pitch, DIP, 72 pin
4630-072-138 Card Edge Connector, 2.54mm Pitch, WIRE WRAP, 72 pin
Products list:14Hits.
