1168 Series

  • Card Edge Type
  • top_rosh.gif

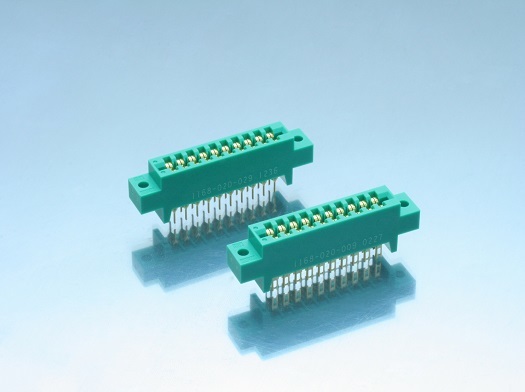

3.97mm Pitch Card Edge Connector

The 1168 Series of 3.97mm card edge connectors uses tongue-type contacts in order to achieve stable contact force.
Put to use mainly in industrial devices, these edge connectors can be employed as part of the KEL Rugged Series.

Features & Specifications

Features

・3.97mm contact centers

・Six sizes: 20, 28, 30, 36, 44 and 56 pins

・Dual leads  Bellow-form contact

Specifications
Insulator material Glass-Filled Polycarbonate (UL94V-0)
Contact material Copper alloy
Current rating Gold over Nickel
Recommended PCB thickness t=1.6(0.063)
Current rating 2A per contact
Contact resistance 15mΩ max.
Dielectric withstanding voltage 1,500V AC for 1minute
Insulation resistance 5,000MΩ min. at 500V DC
Insertion force 4.9N max./pair
Withdrawal force 0.59N min./pair
Operating Temperature -30°C to +85°C

Download Documents

Catalog
Product Table

Products List


Products List:12Hits.
Part Number Description
1168-020-009 Card Edge Connector, 3.97mm Pitch, DIP, 20 pin
1168-020-029 Card Edge Connector, 3.97mm Pitch, DIP, 20 pin
1168-028-009 Card Edge Connector, 3.97mm Pitch, DIP, 28 pin
1168-028-029 Card Edge Connector, 3.97mm Pitch, DIP, 28 pin
1168-030-009 Card Edge Connector, 3.97mm Pitch, DIP, 30 pin
1168-030-029 Card Edge Connector, 3.97mm Pitch, DIP, 30 pin
1168-036-009 Card Edge Connector, 3.97mm Pitch, DIP, 36 pin
1168-036-029 Card Edge Connector, 3.97mm Pitch, DIP, 36 pin
1168-044-009 Card Edge Connector, 3.97mm Pitch, DIP, 44 pin
1168-044-029 Card Edge Connector, 3.97mm Pitch, DIP, 44 pin
Products list:12Hits.
