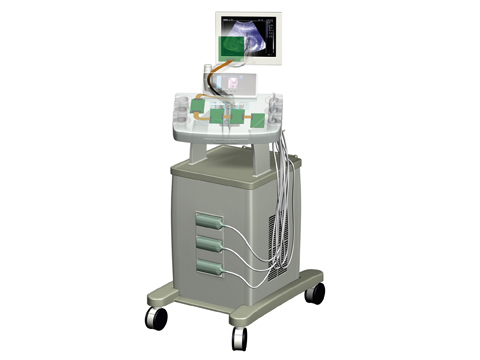

Ultrasound System

KEL's high quality connectors and racks are used in many of the medical equipment where advanced technology as well as safety and reliability are required, and we have been creating new values.

Ultrasound System


Related Applications

Board to Board Connectors
Series name Catalog Mating Matrix Product Table Category Pitch No. of contacts

DU Series
pdf pdf pdf 0.4mm Pitch Floating Connector 0.4mm 80, 110, 120, 200

DT Series
pdf pdf pdf 0.5mm Pitch Floating Connector for High-Speed Transmission 0.5mm 30, 40, 60, 80, 100, 140, 240

DY Series
pdf pdf pdf 0.5mm Pitch Floating Connector 0.5mm 30, 40, 50, 60, 80, 100, 120, 140

8900MS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile SMT Connector 1.27mm 20, 30, 40, 50, 60, 80, 100, 120

8900 Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile Connector 1.27mm 20, 30, 40, 50, 60, 80, 100, 120

8903N-FS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile Connector / Flexible Stack Type 1.27mm 40, 50, 60, 68, 80, 100

8800 Series
pdf pdf pdf 1.27mm Pitch 2 Piece Connector 1.27mm 20, 26, 30, 32, 34, 40, 50, 52, 60, 68, 80, 100

8832E-FS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Connector / Flexible Stack Height Type 1.27mm 20, 30, 40, 50, 60, 80, 100

8806/8807 Series
pdf pdf pdf 1.27mm Pitch 2 piece Connector / Multi-Pin Connector 1.27mm 120, 140, 160, 180, 200

8300/ 8400 Series
pdf pdf pdf 2.54mm Pitch 2 Piece Connector DIN Connector 2.54mm 32, 44, 48, 50, 64, 90, 96, 100

4630 Series
- - pdf 2.54mm Pitch Card Edge Connector 2.54mm 44, 48, 56, 60, 72, 88, 100

4640 Series
pdf - pdf 2.54mm Pitch Card Edge Connector 2.54mm 44, 48, 56, 60, 62, 72, 86, 88, 100

936 Series
- - pdf 2.54mm Pitch Card Edge Connector 2.54mm 100, 120

937 Series
- - pdf 2.54mm Pitch Card Edge Connector 2.54mm 62, 98

4810 Series
- - pdf 3.175mm Pitch Card Edge Connector 3.175mm 40, 60, 80, 100

4820 Series
pdf - pdf 3.18 (3.175)mm Pitch Card Edge Connector 3.175mm 40, 60, 80, 100

1258N Series
pdf - pdf 3.96mm Pitch Card Edge Connector 3.96mm 44, 56, 60, 72, 86, 88

1168 Series
pdf - pdf 3.97mm Pitch Card Edge Connector 3.97mm 20, 28, 30, 36, 44, 56

1156 Series
- - pdf 4mm Pitch Card Edge Connector 4mm 20, 28, 36, 44, 56, 72, 88

1150N Series
- - pdf 4mm Pitch Card Edge Connector 4mm 20, 28, 36, 44, 56

3205/3305 Series
- - pdf 4mm Pitch Card Edge Connector 4mm 10, 14, 18, 22

3250 Series
- - pdf 4mm Pitch Card Edge Connector 4mm 10, 14, 18, 22
Board to Cable Connectors
Series name Catalog Mating Matrix Product Table Category Pitch No. of contacts

XSL Series
pdf pdf pdf 0.25mm Pitch Connector for Micro Coaxial Cable (#42 AWG, #44 AWG, #46 AWG) 0.25mm 48

XSLS Series
pdf pdf pdf 0.25mm Pitch Connector for Micro Coaxial Cable / Stacking Type (#42 AWG, #44 AWG, #46 AWG) 0.25mm 30, 40

USL Series
pdf pdf pdf 0.4mm Pitch I.D.C. Connector for Micro Coaxial Cable (#42 AWG) 0.4mm 20, 30, 40

USLS Series
pdf pdf pdf 0.4mm Pitch I.D.C. Connector for Micro Coaxial Cable / Stacking type (#42 AWG) 0.4mm 20, 30, 40

USLS21 Series
pdf pdf pdf 0.4mm Pitch Connector for Micro Coaxial Cable / Soldered Connection / Stacking Type (#42 AWG, #44 AWG, #46 AWG) 0.4mm 34

SSL Series
pdf pdf pdf 0.5mm Pitch 2 Piece Connector for Micro Coaxial Cable (#40 AWG) 0.5mm 10, 20, 30, 40

8929E Series
pdf pdf pdf 1.27mm Pitch Connector for Discrete Cable / Crimp Type 1.27mm 30, 40, 50, 60, 68

8925E Series
pdf pdf pdf 1.27mm Pitch Low Profile Connectors for 0.635mm Pitch Flat Cable 1.27mm 20, 30, 40, 50, 60, 68, 80, 100

8825E Series
pdf pdf pdf 1.27mm Pitch Connector for 0.635mm Pitch Flat Cable 1.27mm 20, 26, 30, 32, 34, 36, 40, 50, 52, 60, 68, 80, 100

8822E/8822 Series
pdf pdf pdf 1.27mm Pitch Connector for 1.27mm Pitch Flat Cable 1.27mm 20, 26, 30, 32, 34, 36, 40, 50, 52, 60, 68, 80, 100

8840/8850/8855 Series
pdf pdf pdf 1.27mm 2 Piece I/O Connector 1.27mm 20,28,34,50,60,68,80,100
