Gaming Equipment

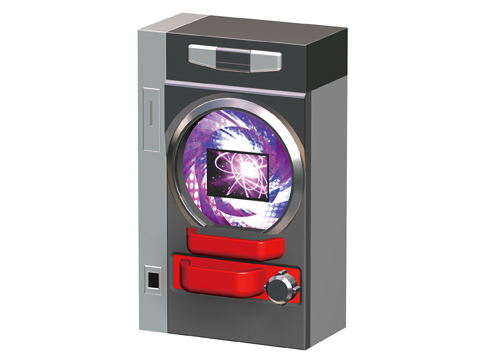

Pachinko

We provide board to board and board to cable connectors such as IC socket connectors that are suitable for gaming equipment.

Pachinko


Related Applications

Board to Board Connectors
Series name Catalog Mating Matrix Product Table Category Pitch No. of contacts

DT Series
pdf pdf pdf 0.5mm Pitch Floating Connector for High-Speed Transmission 0.5mm 30, 40, 60, 80, 100, 140, 240

DY Series
pdf pdf pdf 0.5mm Pitch Floating Connector 0.5mm 30, 40, 50, 60, 80, 100, 120, 140

8600 Series
pdf pdf pdf 0.635mm Pitch 2 piece Connector 0.635mm 52, 60, 120, 140, 160, 200

8602E Series
pdf pdf pdf 0.635mm Pitch 2 piece Connector / Eject-Lock Type 0.635mm 60, 140, 160

87 series
pdf pdf pdf 1mm Pitch 2 Piece SMT Connector 1mm 30, 50, 80, 100, 120

8900MS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile SMT Connector 1.27mm 20, 30, 40, 50, 60, 80, 100, 120

8900 Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile Connector 1.27mm 20, 30, 40, 50, 60, 80, 100, 120

8903N-FS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile Connector / Flexible Stack Type 1.27mm 40, 50, 60, 68, 80, 100

8800 Series
pdf pdf pdf 1.27mm Pitch 2 Piece Connector 1.27mm 20, 26, 30, 32, 34, 40, 50, 52, 60, 68, 80, 100

8832E-FS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Connector / Flexible Stack Height Type 1.27mm 20, 30, 40, 50, 60, 80, 100

8806/8807 Series
pdf pdf pdf 1.27mm Pitch 2 piece Connector / Multi-Pin Connector 1.27mm 120, 140, 160, 180, 200

8300/ 8400 Series
pdf pdf pdf 2.54mm Pitch 2 Piece Connector DIN Connector 2.54mm 32, 44, 48, 50, 64, 90, 96, 100
Board to Cable Connectors
Series name Catalog Mating Matrix Product Table Category Pitch No. of contacts

FAS Series
pdf pdf pdf 1.5mm Pitch Drawer Connector / Crimping Termination for Assembly 1.5mm 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 38, 40

FA Series
pdf pdf pdf 2.5mm Pitch Drawer Connector / Crimping Termination for Assembly 2.5mm 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 38, 40

FBC Series
pdf pdf pdf 2mm Pitch Connector for Discrete Cable / Crimp Type 2mm 26, 36, 40

8929E Series
pdf pdf pdf 1.27mm Pitch Connector for Discrete Cable / Crimp Type 1.27mm 30, 40, 50, 60, 68

8622E Series
pdf pdf pdf 0.635mm Pitch Connector for 0.635mm Pitch Flat Cable 0.635mm 40, 80, 100, 120

8925E Series
pdf pdf pdf 1.27mm Pitch Low Profile Connectors for 0.635mm Pitch Flat Cable 1.27mm 20, 30, 40, 50, 60, 68, 80, 100

8825E Series
pdf pdf pdf 1.27mm Pitch Connector for 0.635mm Pitch Flat Cable 1.27mm 20, 26, 30, 32, 34, 36, 40, 50, 52, 60, 68, 80, 100

8822E/8822 Series
pdf pdf pdf 1.27mm Pitch Connector for 1.27mm Pitch Flat Cable 1.27mm 20, 26, 30, 32, 34, 36, 40, 50, 52, 60, 68, 80, 100
Socket & Battery Connectors
Series name Catalog Mating Matrix Product Table Category Pitch No. of contacts

SIC01 Series
pdf - pdf 1.778mm Pitch Shrink IC Socket 1.778mm 28, 40, 42, 56, 64

ICC05 Series
pdf - pdf IC Socket 2.54mm 8, 14, 16, 18, 20, 22, 24, 28, 32, 40, 42

SOC01 Series
- - pdf SOP socket / 44P 1.27mm 44

SSC02 Series
- - pdf One-piece socket for small SSOP (70 pins) 0.8mm 70

LGC01 Series
- - pdf FLGA (fine-pitch land grid array)-compatible connector (88 pins) 0.8mm 88

LGC02 Series
- - pdf FLGA (fine-pitch land grid array)-compatible connector (88 pins), compact type 0.8mm 88

LGC03 Series
- - pdf FLGA (fine-pitch land grid array)-compatible connector (54 pins) 0.8mm 54

LGC04 Series
- - pdf FLGA (fine-pitch land grid array)-compatible connector (140 pins) 0.8mm 140
