Facility Equipment

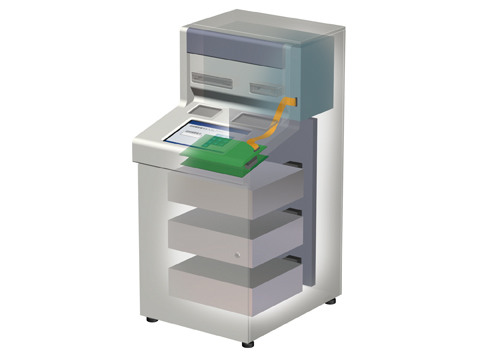

ATM

Since its foundation, we have built reliability and achievements by developing products such as industrial connectors for facility equipment where high reliability is needed.

Board to Board Connectors
Series name Catalog Mating Matrix Product Table Category Pitch No. of contacts

DU Series
pdf pdf pdf 0.4mm Pitch Floating Connector 0.4mm 80, 110, 120, 200

DT Series
pdf pdf pdf 0.5mm Pitch Floating Connector for High-Speed Transmission 0.5mm 30, 40, 60, 80, 100, 140, 240

DY Series
pdf pdf pdf 0.5mm Pitch Floating Connector 0.5mm 30, 40, 50, 60, 80, 100, 120, 140

DJ Series
pdf pdf pdf 1mm Pitch 2 Piece Connector for Removable Media Device 1mm 40, 50, 60, 80

8900MS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile SMT Connector 1.27mm 20, 30, 40, 50, 60, 80, 100, 120

8900 Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile Connector 1.27mm 20, 30, 40, 50, 60, 80, 100, 120

8903N-FS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Low Profile Connector / Flexible Stack Type 1.27mm 40, 50, 60, 68, 80, 100

8800 Series
pdf pdf pdf 1.27mm Pitch 2 Piece Connector 1.27mm 20, 26, 30, 32, 34, 40, 50, 52, 60, 68, 80, 100

8832E-FS Series
pdf pdf pdf 1.27mm Pitch 2 Piece Connector / Flexible Stack Height Type 1.27mm 20, 30, 40, 50, 60, 80, 100
Board to Cable Connectors
Series name Catalog Mating Matrix Product Table Category Pitch No. of contacts

FAS Series
pdf pdf pdf 1.5mm Pitch Drawer Connector / Crimping Termination for Assembly 1.5mm 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 38, 40

FA Series
pdf pdf pdf 2.5mm Pitch Drawer Connector / Crimping Termination for Assembly 2.5mm 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 38, 40

8929E Series
pdf pdf pdf 1.27mm Pitch Connector for Discrete Cable / Crimp Type 1.27mm 30, 40, 50, 60, 68

8925E Series
pdf pdf pdf 1.27mm Pitch Low Profile Connectors for 0.635mm Pitch Flat Cable 1.27mm 20, 30, 40, 50, 60, 68, 80, 100
