The next generation small waterproof connector by KEL

<Advantages of using FWB (Branch relay type)>



<FWB Product Lineup>

 The number of pins can be selected from 2/3/4 pins, and the housing color can be selected from white and black. The white and black color variations are assumed to be used in a wide range of markets, and in combination with plug-side connectors (FWP11 · 4 colors of white, red, blue, and black), it plays a role in improving work efficiency.

FWB01-02-1
2 pin / Housing color : White
FWB01-03-1
3 pin / Housing color : White
FWB01-04-1
4 pin / Housing color : White
FWB01-02-4
2 pin / Housing color : Black
FWB01-02-4
3 pin / Housing color : Black
FWB01-02-4
3 pin / Housing color : Black



<Features>

1. Industry's smallest class external dimensions are realized as a 5.0 mm pitch waterproof connector.

 - The 5.0 mm pitch waterproof connector achieves the industry's smallest height and length.


   - The branch relay type (FWB01) can be passed through a duct with a minimum of diameter Φ32.6mm.
     (4 pin type)

2. Can be attached anywhere with binding band.

 - Crimp contact adopts plug side and receptacle side same type contact of KEL original development and achives stable contact by 3 point contact by independent spring.

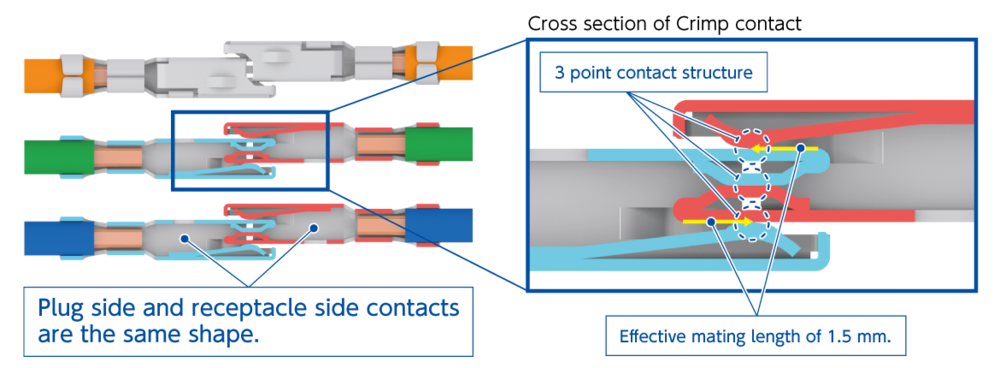

3. High reliability desingwith 3 points contact structure. KEL's original contacts on the plug side and the receptacle side have the same shape. (Patent pending)

 - Crimp contact adopts plug side and receptacle side same type contact of KEL original development and achives stable contact by 3 point contact by independent spring.
 - Highly reliable design with an effective mating length of 1.5 mm.



4. Connector structure realizing improvement in assembly workability

 - The crimp contacts on the plug side and the recectaple side have the same shape, so the crimp applicator can be used in common.

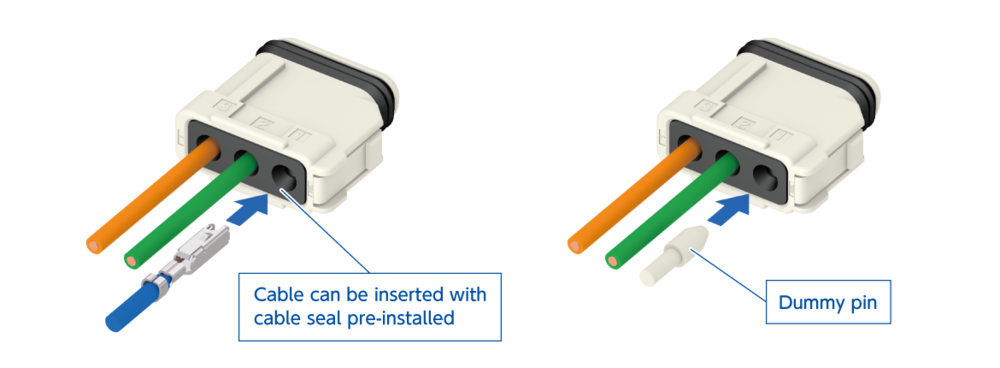

 - The cable seal and the seal ring are delieverd in the state of being attached to the housing.
 - By using KEL decicated dummy pins, it is possible to configure different contact numbers with same connector.



5. Robust lock structure with reliable click feel.

 - Robust locking mechanism has tactile click feeling.

<FW Series Movie>


<Main Applications>

Plant factory

Vending machines

Business showcases

・Agri market (plant factory, dairy, paddy field, etc.)
・Lighting equipment market (LED display, street lamp, tunnel lighting, etc.)
・Air conditioning equipment market (Commercial Air Conditioner)
・Kitchen equipment market (business showcases, vending machines, coffee servers, etc.)
・Sanitary equipment market (toilet, bathroom, toilet equipment, etc.)
・Security market (surveillance cameras)
・Drone market / Other equipment market
